2-in-1製品

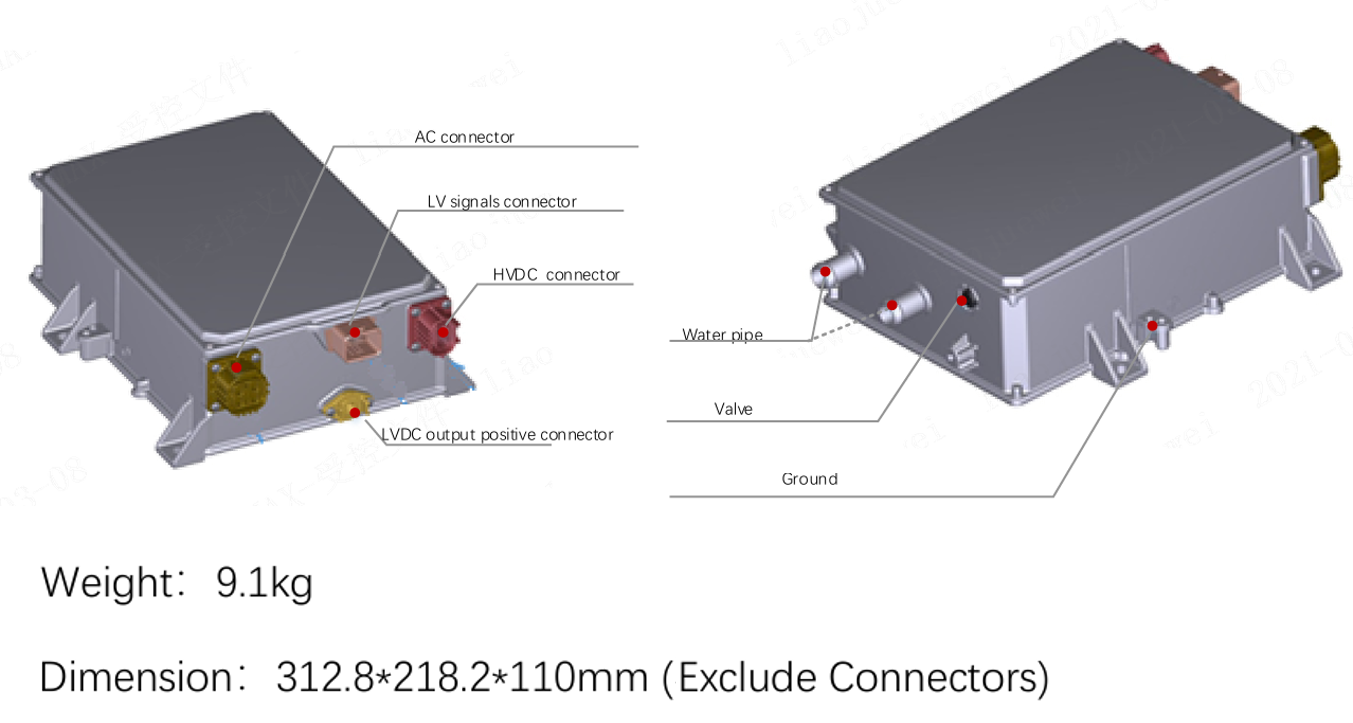

2-in-1製品代表例（OBC[10kW] / DCAC[3.3kVA]) + DCDC[2.5kW]

・OBC technical parameters	・OBC technical parameters
Input voltage range	90~264 Vac @ 1φ, 184~456 Vac @ 3φ
Rated input voltage	230 Vac @ 1φ, 380 Vac @ 3φ
Input frequency range	45~65 Hz
Max input current	32 A @ 1φ, 16 A @ 3φ
Power Factor	≥ 0.99 @ Rated input and output
Output voltage range	200 ~ 450 Vdc
Rated output voltage	350 Vdc
Max output current	22 A @ 1φ, 31 A @ 3φ
Output voltage accuracy	≤ ±1%
Output current accuracy	≤ ±3% @ > 10 A, ≤ ±0.3% @ < 10 A
Output voltage ripple coefficient	≤ ±5%
Max output power	6.6 kW @ 1φ, 9.9 kW @ 3φ
Efficiency	93.5% @ 1φ, 65% @ 3φ
・DCDC technical parameters	・DCDC technical parameters
Input voltage range	200 ~ 450 Vdc
Rated input voltage	350 Vdc
Max input current	12 A
Output rated voltage	9 ~ 16 Vdc
Rated output voltage	14.5 Vdc
Rated output current	172.5 A continuous
Rated output power	2.5 kW continuous
Efficiency	92% @ Rated input and output
Output voltage accuracy	≤ ±1%
Output voltage ripple coefficient	≤ 500 mV @ 20 MHz
Output voltage overshoot	≤ 5% @ Vout
・DCAC technical parameters	・DCAC technical parameters
Input voltage range	300 ~ 450 Vdc
Ouput voltage	220 Vac (±5%)
Output frequency range	50 Hz (±2%)
Rated output power	3.3 kVA max
Efficiency	≥ 93%
・Environmental performance	・Environmental performance
Operating temperature	-40 ~ 85 ℃
Storage temperature	-40 ~ 105 ℃
Humidity	5% ~ 95% (no condensing, no frost)
Cooling method	Liquid cooling
Cooling nozzle	20mm
Liquid requirement	50% water and 50% glycol
Coolant rate	≥ 6 L/min
Altitude	5000 m
IP class	IP67
